0031048/100 | LAPP

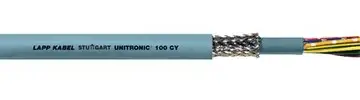

PVC data cable, 3-wire, 0.34 mm², gray, 0031048/100
Order No.: 32P3517
EAN: 4044774710440
MPN:
0031048/100
UNITRONIC 100 CY 3x0,34
Series: UNITRONIC 100 CY
Unit Price (€ / mtr.)
2.9036 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
2.90 € *
Price list
Quantity
Price per unit*
1 mtr.
2.9036 €
10 mtr.
2.5347 €
50 mtr.
2.3443 €
100 mtr.
2.1420 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC data cable, 0031048/100, LAPP KABEL
Screened control and signal cable with small cross-sections, low-frequency. This control and signal cable is used in the milliampere range for computer systems, electronic control equipment and office machines.
Features
- Flame-retardant
- Resistant outer sheath
- Highly flexible
- Robust
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 3 | |
| Version | data cable | |
| Outer diameter | 5.8 mm | |
| Colour | gray | |
| Halogen free | No | |
| Cable material | copper, bright | |
| Cable cross-section | 0.34 mm² | |
| Material | PVC | |
| Shielding | unshielded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444993 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
