0032467 | LAPP

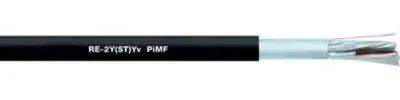

PVC computer cable, 24-wire, 1.3 mm², black, 0032467
Order No.: 33P6153
EAN: 4044774740522
MPN:
0032467
UNITRONIC RE-2Y(ST)YV PIMF 12X2X1,3 BK
Series: UNITRONIC RE-2Y(ST)Yv PiMF
Unit Price (€ / mtr.)
24.3355 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
12,167.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 mtr.
24.3355 €
Computer cable, 0032467, LAPP
The 0032467 is mainly used in measurement and control engineering. It is intended for use when modern process computers have to process large volumes of data, e.g. high-capacity computer systems in waste incineration plants or sewage treatment plants. This product is suitable for fixed installation in dry or damp rooms and, in case of the black jacketed versions, also for outdoor use.
Features
- Interference signals
- Flame-retardant
- Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
- Low capacitance due to polyolefin-based insulation
- Computer cable with screened pairs and reinforced outer sheath
Technical specifications
| Core insulation material | PE | |
| Number of cores | 24 | |
| Version | Rechnerkabel | |
| Outer diameter | 22 mm | |
| Colour | schwarz | |
| Halogen free | No | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 1,3 mm² | |
| Material | PVC | |
| Shielding | geschirmt | |
| Drag chain suitable | No | |
| Temperature range (active) | -5 °C bis 50 °C | |
| Temperature range (unmoved) | -40 °C bis 80 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444993 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
