0032836 | LAPP

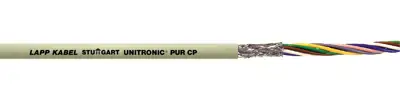

PUR data cable, 12-wire, 0.75 mm², gray, 0032836
Order No.: 33P6121
EAN: 4044774711287
MPN:
0032836
UNITRONIC PUR CP 12x0,75
Series: UNITRONIC PUR CP
Unit Price (€ / mtr.)
9.2106 € *
Available: 0 mtr.
Leadtime: On Request **
Data cable, 0032836, LAPP
The 0032836 is a screened cable for low frequency applications. The cable is designed for fixed installation and for conditional flexible use. It is used in dry, damp and wet interiors and appropriate for outside usage. The screen provides protection against electromagnetic interferences. This data and signal cable is used in computer systems, electronic control and office equipment.
Features
- Mechanical resistance
- Oil-resistant
- Interference signals
- UV-resistant
- Flame-retardant
- Low-adhesive surface
- Special notch and tear-resistance
Technical specifications
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 12 | |
| Ausführung | Datenleitung | |
| Außendurchmesser | 10.8 mm | |
| Farbe | grau | |
| Halogenfrei | No | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,75 mm² | |
| Material | PUR | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
