0033306/100 | LAPP

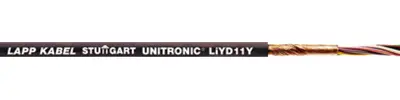

PUR data cable, 6-wire, 0.25 mm², black, 0033306/100
PUR control cables, shielded, type Lapp Kabel UNITRONIC LiYD11Y.
Particularly abrasion-resistant outer insulation, flame retardant to IEC 60332, designed for use in industrial environments; Conductors: stranded copper wire, bright, super-fine wire. PVC conductor insulation. Color coded to DIN 47100, without color repetition, wires twisted in layers. Shielding: copper wire braid. Outer insulation made of PUR. Color: black. Test voltage: 1200 V. Insulation: specific resistance min. 20 Gohm/cm. Operating capacitance wire to wire/wire to shielding: approx. 140/150 nF/km. Temperature range in static/moving state: –30 to +80 °C/–5.0 to +70 °C.
Cross-section 0.25 mm².
Peak operating voltage: 500 V.
Technical attributes (number of poles, outer diameter OD): 6-pole, OD 6.8 mm
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 6 | |
| Ausführung | Datenkabel | |
| Außendurchmesser | 6.8 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,25 mm² | |
| Material | PUR | |
| Schirmung | geschirmt | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 80 °C |
| Ursprungsland | DE |
| Zolltarifnummer | 85444993 |
| Originalverpackung | Ring mit 100 Meter |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
