0035800 | LAPP
PVC data cable, 2-wire, 0.25 mm², AWG 24, gray, 0035800
Order No.: 32P5043
EAN: 4044774716985
MPN:
0035800
UNITRONIC LiYCY (TP) 2x2x0,25
Series: UNITRONIC LiYCY (TP)
Unit Price (€ / mtr.)
2.0111 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
2.01 € *
Price list
Quantity
Price per unit*
1 mtr.
2.0111 €
10 mtr.
1.7612 €
50 mtr.
1.5946 €
100 mtr.
1.4756 €
500 mtr.
1.3566 €
*incl. VAT plus shipping costs
**Subject to prior sale

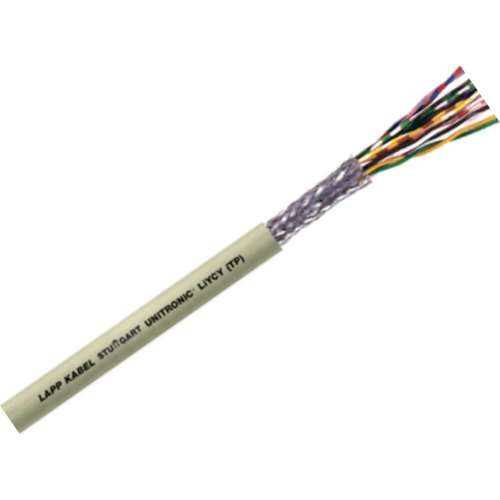

PVC data cable, 0035800/100, LAPP KABEL
Screened PVC data transmission cable, low-frequency.
Features
- Good protection from electric fields
- Interference signals
- Flame-retardant
- Overall braid minimises electrical interference
Technical specifications
Aderisolationsmaterial | PVC | |
Anzahl der Adern | 2 | |
Ausführung | Datenkabel | |
Außendurchmesser | 6.3 mm | |
AWG-Leiterquerschnitt | AWG 24 | |
Farbe | grau | |
Halogenfrei | No | |
Leitermaterial | Kupfer, blank | |
Leiterquerschnitt | 0,25 mm² | |
Material | PVC | |
Schirmung | geschirmt | |
Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
Ursprungsland | ES |
Zolltarifnummer | 85444993 |
Compliance
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | Yes |
