0037403/100 | LAPP

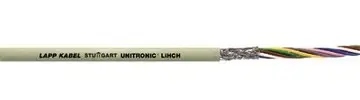

PVC data cable, 3-wire, 0.25 mm², AWG 24, gray, 0037403/100
Order No.: 32P4357
EAN: 4044774719641
MPN:
0037403/100
UNITRONIC LiHCH 3x0,25
Series: UNITRONIC LiHCH
Unit Price (€ / mtr.)
3.2606 € *
Available: 0 mtr.
Leadtime: On Request **
Halogen-free data cable, 0037403/100, LAPP KABEL
Low-frequency halogen-free data cable, flexible.
Features
- Flame-retardant
- Halogen-free
- Interference signals
- Low smoke zero halogen
Technical specifications
| Core insulation material | PE | |
| Number of cores | 3 | |
| Version | Datenkabel | |
| Outer diameter | 4.9 mm | |
| AWG cross-section | AWG 24 | |
| Colour | grau | |
| Halogen free | Yes | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 0,25 mm² | |
| Material | PVC | |
| Shielding | geschirmt | |
| Temperature range (active) | -5 °C bis 70 °C | |
| Temperature range (unmoved) | -30 °C bis 80 °C |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 85444993 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
