0037608/100 | LAPP

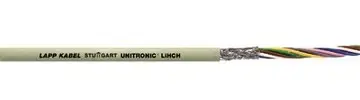

Data cable, 8-wire, 0.5 mm², AWG 20, gray, 0037608/100
Order No.: 32P4425
EAN: 4044774720333
MPN:
0037608/100
UNITRONIC LiHCH 8x0,5
Series: UNITRONIC LiHCH
Unit Price (€ / mtr.)
6.0928 € *
Available: 0 mtr.
Leadtime: On Request **
Halogen-free data cable, 0037608/100, LAPP KABEL
Low-frequency halogen-free data cable, flexible.
Features
- Flame-retardant
- Halogen-free
- Interference signals
- Low smoke zero halogen
Technical specifications
| Core insulation material | PE | |
| Number of cores | 8 | |
| Version | data cable | |
| Outer diameter | 8.9 mm | |
| AWG cross-section | AWG 20 | |
| Colour | gray | |
| Halogen free | Yes | |
| Cable material | copper, bright | |
| Cable cross-section | 0.5 mm² | |
| Shielding | shielded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -30 °C to 80 °C |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85444993 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
