0038412/100 | LAPP

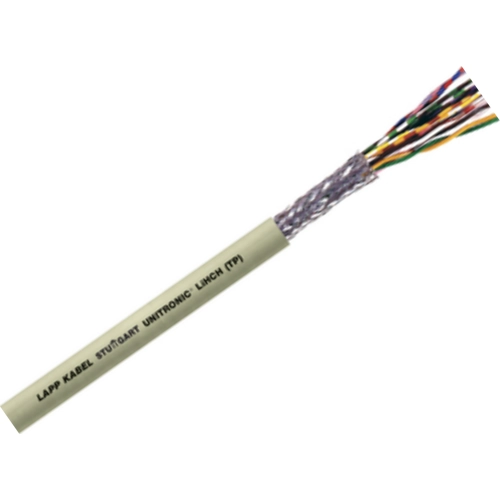

Data cable, 12-wire, 0.25 mm², AWG 24, gray, 0038412/100
Order No.: 32P4431
EAN: 4044774721347
MPN:
0038412/100
UNITRONIC LiHCH (TP) 12x2x0,25
Series: UNITRONIC LiHCH (TP)
Unit Price (€ / mtr.)
14.875 € *
Available: 0 mtr.
Leadtime: On Request **
Halogen-free data cable, 0038412/100, LAPP KABEL
Halogen-free data transmission cable, low-frequency, flexible.
Features
- Halogen-free
- Interference signals
- Flame-retardant
- Overall braid minimises electrical interference
Technical specifications
| Core insulation material | PE | |
| Number of cores | 12 | |
| Version | Datenkabel | |
| Outer diameter | 11.5 mm | |
| AWG cross-section | AWG 24 | |
| Colour | grau | |
| Halogen free | Yes | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 0,25 mm² | |
| Shielding | geschirmt | |
| Temperature range (active) | -5 °C bis 70 °C | |
| Temperature range (unmoved) | -30 °C bis 80 °C |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 85444993 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
