0066208 | LAPP
PVC data cable, 16-wire, 0.14 mm², AWG 26, gray, 0066208
Order No.: 33P6118
EAN: 4044774722634
MPN:
0066208
UNITRONIC LiYCY(TP) A 8X2X26AWG/7
Series: UNITRONIC LiYCY (TP) A
Unit Price (€ / mtr.)
3.6414 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
3.64 € *
Price list
Quantity
Price per unit*
152 mtr.
3.6414 €
304 mtr.
3.4510 €
*incl. VAT plus shipping costs
**Subject to prior sale

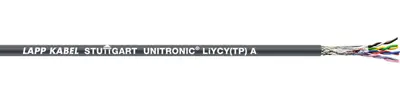

Data cable, 0066208, LAPP
The 0066208 is a screened, twisted pair data cable for low frequency applications with UL and CSA approval. The cable is intended for internal and external wiring of devices, machines and plants for export to the North American market or countries where UL- /CSA approved cable is used. It is designed for fixed installation and for conditional flexible use. It is used in dry and damp interiors but not appropriate for outside usage.
The twisted pairs with short lay lengths provides good decoupling of the conductor circuits. The screen provides protection against electromagnetic interferences.
Features
- Interference signals
- Overall braid minimises electrical
- Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
- Flame-retardant
Applications
- Wiring of devices
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 16 | |
| Version | data cable | |
| Outer diameter | 7.9 mm | |
| AWG cross-section | AWG 26 | |
| Colour | gray | |
| Halogen free | No | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.14 mm² | |
| Material | PVC | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
