1030634 | LAPP
PVC data cable, 6-wire, 1.0 mm², AWG 18, black, 1030634
Order No.: 33P7116
EAN: 4064727123639
MPN:
1030634
UNITRONIC LiYCY (TP) 3x2x1 BK
Series: UNITRONIC LiYCY (TP) BK
Unit Price (€ / mtr.)
4.0698 € *
Available: 0 mtr.
Leadtime: On Request **

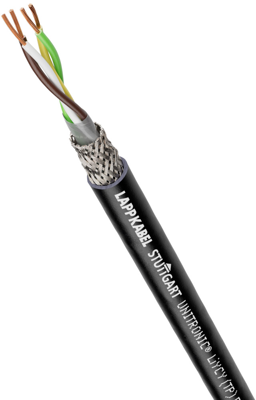

Data cable, 1030634, LAPP
The 1030634 is a screened, twisted pair data cable for low frequency applications. The cable is designed for fixed installation and for conditional flexible use. It can be used in dry and damp rooms and also outdoors. The twisted pairs with short lay lengths provides good decoupling of the conductor circuits. The screen provides protection against electromagnetic interferences. The cable is used for example in computer systems, instrumentation technology, office equipment and balances.
Technical specifications
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 6 | |
| Ausführung | Datenkabel | |
| Außendurchmesser | 10 mm | |
| AWG-Leiterquerschnitt | AWG 18 | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Schirmung | geschirmt | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | QU |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
