11139504 | LAPP

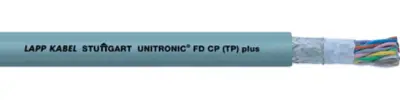

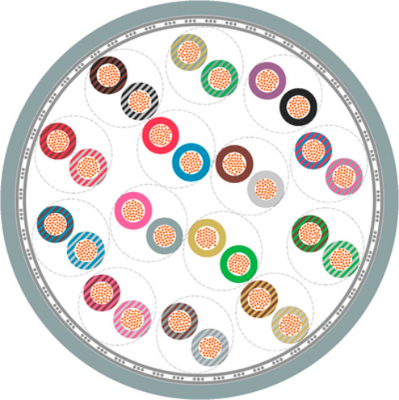

PUR data cable, 10-wire, 0.14 mm², AWG 26, gray, 11139504
Order No.: 33P224
EAN: 4064727478609
MPN:
11139504
UNITRONIC FD CP (TP) plus A 5X2X0,14
Series: UNITRONIC FD CP (TP) plus A
Unit Price (€ / mtr.)
6.3546 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Data cable, 11139504, LAPP
This cable is a shielded, highly flexible, low-capacitive PUR data cable with twisted pairs for sophisticated chain track.
Features
- Halogen-free
- Good chemical resistance
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Low-adhesive surface
Applications
Technical specifications
| Core insulation material | polyolefine | |
| Number of cores | 10 | |
| Version | data cable | |
| Outer diameter | 7.3 mm | |
| AWG cross-section | AWG 26 | |
| Colour | gray | |
| Halogen free | Yes | |
| Cable material | copper, bright | |
| Cable cross-section | 0.14 mm² | |
| Material | PUR | |
| Shielding | shielded | |
| Drag chain suitable | Yes | |
| Temperature range (active) | -40 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444993 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
