11139521 | LAPP

PUR data cable, 4-wire, 0.5 mm², AWG 20, gray, 11139521

Order No.: 33P241
EAN: 4064727479316
MPN:
11139521
UNITRONIC FD CP (TP) plus A 2X2X0,5
Series: UNITRONIC FD CP (TP) plus A
LAPP

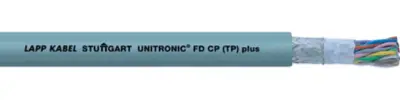

11139521 LAPP Data Cables Image 1

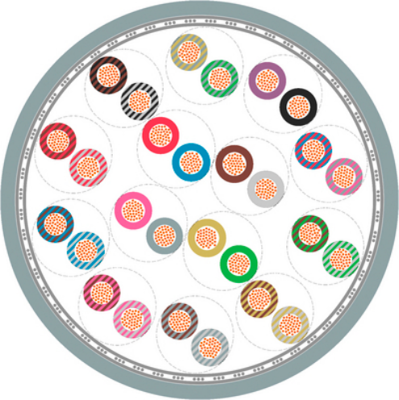

11139521 LAPP Data Cables Image 2
Image may differ
Print
Key Specification:
Ausführung Datenkabel
Anzahl der Adern 4
Leiterquerschnitt 0,5 mm²
AWG-Leiterquerschnitt AWG 20
Außendurchmesser 8.3 mm
Show 44 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
6.5569 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Add to Cart
Total Price:
6.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
6.5569 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Data cable, 11139521, LAPP

This cable is a shielded, highly flexible, low-capacitive PUR data cable with twisted pairs for sophisticated chain track.

Features

  • Halogen-free
  • Good chemical resistance
  • Cold-resistant
  • Mechanical resistance
  • Oil-resistant
  • Low-adhesive surface

Applications

  • Suitable for use in measuring, control and regulating circuits
  • Linear robots, automated handling equipment
  • Sophisticated design for high-performance chain/ track use
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Technical specifications
Aderisolationsmaterial Polyolefin
Anzahl der Adern 4
Ausführung Datenkabel
Außendurchmesser 8.3 mm
AWG-Leiterquerschnitt AWG 20
Farbe grau
Halogenfrei Yes
Leitermaterial Kupfer, blank
Leiterquerschnitt 0,5 mm²
Material PUR
Schirmung geschirmt
Schleppkettentauglich Yes
Temperaturbereich (bewegt) -40 °C bis 80 °C
Temperaturbereich (unbewegt) -40 °C bis 80 °C
Show similar products 0
Logistics
Ursprungsland IT
Zolltarifnummer 85444993
Originalverpackung Ring mit 100 Meter
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
