11139528 | LAPP

PUR data cable, 28-wire, 0.5 mm², AWG 20, gray, 11139528

Order No.: 33P248
EAN: 4064728766026
MPN:
11139528
UNITRONIC FD CP (TP) plus A 14X2X0,5
Series: UNITRONIC FD CP (TP) plus A
LAPP

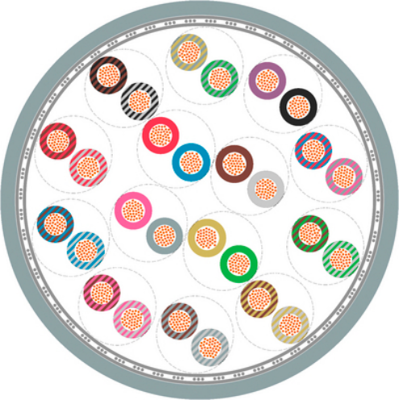

11139528 LAPP Data Cables Image 1

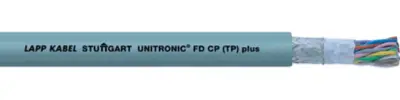

11139528 LAPP Data Cables Image 2
Image may differ
Print
Key Specification:
Version Datenkabel
Number of cores 28
Cable cross-section 0,5 mm²
AWG cross-section AWG 20
Outer diameter 15.5 mm
Show 44 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
24.6925 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
1,234.63 € *
Price list
Quantity
Price per unit*
50 mtr.
24.6925 €
100 mtr.
23.1574 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Data cable, 11139528, LAPP

This cable is a shielded, highly flexible, low-capacitive PUR data cable with twisted pairs for sophisticated chain track.

Features

  • Halogen-free
  • Good chemical resistance
  • Cold-resistant
  • Mechanical resistance
  • Oil-resistant
  • Low-adhesive surface

Applications

  • Suitable for use in measuring, control and regulating circuits
  • Linear robots, automated handling equipment
  • Sophisticated design for high-performance chain/ track use
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Technical specifications
Core insulation material Polyolefin
Number of cores 28
Version Datenkabel
Outer diameter 15.5 mm
AWG cross-section AWG 20
Colour grau
Halogen free Yes
Cable material Kupfer, blank
Cable cross-section 0,5 mm²
Material PUR
Shielding geschirmt
Drag chain suitable Yes
Temperature range (active) -40 °C bis 80 °C
Temperature range (unmoved) -40 °C bis 80 °C
Articles of same specification 0
Logistics
Country of origin IT
Customs tariff number 85444995
Original Packaging Ring mit 100 Meter
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
