11139534 | LAPP
PUR data cable, 20-wire, 0.75 mm², gray, 11139534
Order No.: 33P254
EAN: 4064728766040
MPN:
11139534
UNITRONIC FD CP (TP) plus A 10X2X0,75
Series: UNITRONIC FD CP (TP) plus A
Unit Price (€ / mtr.)
28.3220 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
1,416.10 € *
Price list
Quantity
Price per unit*
50 mtr.
28.3220 €
100 mtr.
26.5489 €
*incl. VAT plus shipping costs
**Subject to prior sale

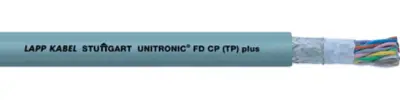

Data cable, 11139534, LAPP

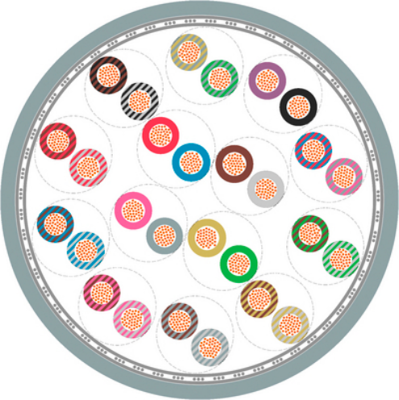

This cable is a shielded, highly flexible, low-capacitive PUR data cable with twisted pairs for sophisticated chain track.
Features
- Halogen-free
- Good chemical resistance
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Low-adhesive surface
Applications
Technical specifications
| Core insulation material | Polyolefin | |
| Number of cores | 20 | |
| Version | Datenkabel | |
| Outer diameter | 16.7 mm | |
| Colour | grau | |
| Halogen free | Yes | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 0,75 mm² | |
| Material | PUR | |
| Shielding | geschirmt | |
| Drag chain suitable | Yes | |
| Temperature range (active) | -40 °C bis 80 °C | |
| Temperature range (unmoved) | -40 °C bis 80 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
| Original Packaging | Ring mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
