11139537 | LAPP
PUR data cable, 4-wire, 1.0 mm², AWG 18, gray, 11139537
Order No.: 33P257
EAN: 4064727479958
MPN:
11139537
UNITRONIC FD CP (TP) plus A 2X2X1,0
Series: UNITRONIC FD CP (TP) plus A
Unit Price (€ / mtr.)
8.687 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Data cable, 11139537, LAPP

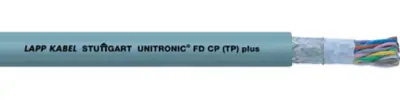

This cable is a shielded, highly flexible, low-capacitive PUR data cable with twisted pairs for sophisticated chain track.
Features
- Halogen-free
- Good chemical resistance
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Low-adhesive surface
Applications
Technical specifications
| Core insulation material | polyolefine | |
| Number of cores | 4 | |
| Version | data cable | |
| Outer diameter | 9.9 mm | |
| AWG cross-section | AWG 18 | |
| Colour | gray | |
| Halogen free | Yes | |
| Cable material | copper, bright | |
| Cable cross-section | 1.0 mm² | |
| Material | PUR | |
| Shielding | shielded | |
| Drag chain suitable | Yes | |
| Temperature range (active) | -40 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
