11139539 | LAPP

PUR data cable, 8-wire, 1.0 mm², AWG 18, gray, 11139539

Order No.: 33P259
EAN: 4064727480046
MPN:
11139539
UNITRONIC FD CP (TP) plus A 4X2X1,0
Series: UNITRONIC FD CP (TP) plus A
LAPP

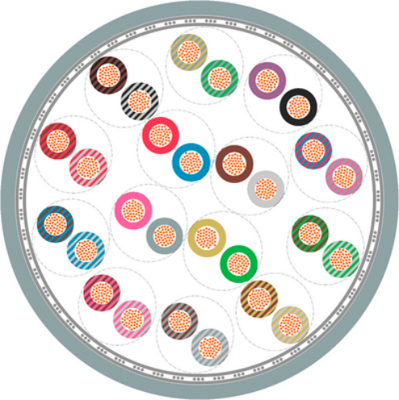

11139539 LAPP Data Cables Image 1

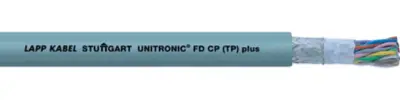

11139539 LAPP Data Cables Image 2
Image may differ
Print
Key Specification:
Version Datenkabel
Number of cores 8
Cable cross-section 1,0 mm²
AWG cross-section AWG 18
Outer diameter 11.8 mm
Show 44 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
12.3879 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
1,238.79 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
12.3879 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Data cable, 11139539, LAPP

This cable is a shielded, highly flexible, low-capacitive PUR data cable with twisted pairs for sophisticated chain track.

Features

  • Halogen-free
  • Good chemical resistance
  • Cold-resistant
  • Mechanical resistance
  • Oil-resistant
  • Low-adhesive surface

Applications

  • Suitable for use in measuring, control and regulating circuits
  • Linear robots, automated handling equipment
  • Sophisticated design for high-performance chain/ track use
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Technical specifications
Core insulation material Polyolefin
Number of cores 8
Version Datenkabel
Outer diameter 11.8 mm
AWG cross-section AWG 18
Colour grau
Halogen free Yes
Cable material Kupfer, blank
Cable cross-section 1,0 mm²
Material PUR
Shielding geschirmt
Drag chain suitable Yes
Temperature range (active) -40 °C bis 80 °C
Temperature range (unmoved) -40 °C bis 80 °C
Articles of same specification 0
Logistics
Country of origin IT
Customs tariff number 85444995
Original Packaging Ring mit 100 Meter
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
