11139544 | LAPP

PUR data cable, 2-wire, 0.25 mm², AWG 24, gray, 11139544

Order No.: 33P264
EAN: 4064727480251
MPN:
11139544
UNITRONIC FD CP (TP) plus A 1X2X0,25
Series: UNITRONIC FD CP (TP) plus A
LAPP
11139544 LAPP Data Cables Image 1
11139544 LAPP Data Cables Image 2
Image may differ
Print
Key Specification:
Ausführung Datenkabel
Anzahl der Adern 2
Leiterquerschnitt 0,25 mm²
AWG-Leiterquerschnitt AWG 24
Außendurchmesser 4.7 mm
Show 44 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
2.2491 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Add to Cart
Total Price:
2.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
2.2491 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

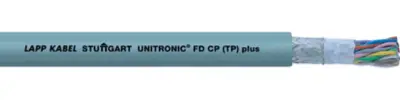

Data cable, 11139544, LAPP

This cable is a shielded, highly flexible, low-capacitive PUR data cable with twisted pairs for sophisticated chain track.

Features

  • Halogen-free
  • Good chemical resistance
  • Cold-resistant
  • Mechanical resistance
  • Oil-resistant
  • Low-adhesive surface

Applications

  • Suitable for use in measuring, control and regulating circuits
  • Linear robots, automated handling equipment
  • Sophisticated design for high-performance chain/ track use
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Technical specifications
Aderisolationsmaterial Polyolefin
Anzahl der Adern 2
Ausführung Datenkabel
Außendurchmesser 4.7 mm
AWG-Leiterquerschnitt AWG 24
Farbe grau
Halogenfrei Yes
Leitermaterial Kupfer, blank
Leiterquerschnitt 0,25 mm²
Material PUR
Schirmung geschirmt
Schleppkettentauglich Yes
Temperaturbereich (bewegt) -40 °C bis 80 °C
Temperaturbereich (unbewegt) -40 °C bis 80 °C
Show similar products 0
Logistics
Ursprungsland IT
Zolltarifnummer 85444995
Originalverpackung Ring mit 100 Meter
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
