11139609 | LAPP
PUR data cable, 3-wire, 0.25 mm², AWG 24, gray, 11139609
Order No.: 33P2801
EAN: 4064727480602
MPN:
11139609
UNITRONIC FD CP plus A 3X0,25
Series: UNITRONIC FD CP plus A
Unit Price (€ / mtr.)
4.1293 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

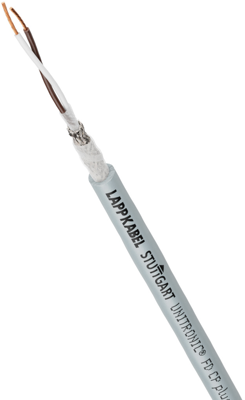

Data cable, 11139609, LAPP
The 11139609 is a high flexible and screened data cable with an outer sheath of PUR. This product with low capacitance is designed especially for use in power chains, automatic manipulators, in permanently moved machinesparts. It is suitable for torsion application in wind turbines (WTG). The torsional load is limited to applications, as they typically occur in the loop of a wind turbine.
Features
- Mechanical and plant engineering
- Wind Energy
- Suitable for outdoor use
- Good chemical resistance
- Cold-resistant
- Oil-resistant
- Interference signals
- Torsion load
Technical specifications
| Core insulation material | polyolefine | |
| Number of cores | 3 | |
| Version | data cable | |
| Outer diameter | 4.9 mm | |
| AWG cross-section | AWG 24 | |
| Colour | gray | |
| Halogen free | Yes | |
| Cable material | copper, bright | |
| Cable cross-section | 0.25 mm² | |
| Material | PUR | |
| Shielding | shielded | |
| Drag chain suitable | Yes | |
| Temperature range (active) | -40 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
