2170588 | LAPP
PVC ethernet cable, Cat 6A, 8-wire, AWG 26-7, green, 2170588
Order No.: 33P3411
EAN: 4044777942138
MPN:
2170588
ETHERLINE CAT.6A Y FLEX FC
Series: ETHERLINE Cat.6A FLEX FC
Unit Price (€ / mtr.)
6.7235 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Ethernet cable, 2170588, LAPP

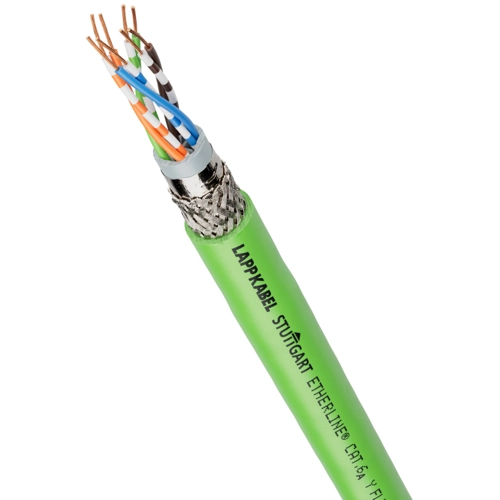

The 2170588 is a flexible Cat.6A ethernet cable with fast connect design, for applications with limited space and short transmission distances.
Features
- Mechanical and plant engineering
- Suitable for outdoor use
- Flame-retardant
- Assembly time
- Interference signals
- UV-resistant
Applications
- Usable in dry, damp and wet environments.
- Usable in a variety of ways depending on the sheath material
- Flexible use
Technical specifications
| Aderisolationsmaterial | Polyolefin | |
| Anzahl der Adern | 8 | |
| Ausführung | Ethernet-Kabel | |
| Außendurchmesser | 7.6 mm | |
| AWG-Leiterquerschnitt | AWG 26-7 | |
| Farbe | grün | |
| Halogenfrei | Yes | |
| Kategorie | Cat 6A | |
| Leitermaterial | Kupfer, blank | |
| Material | PVC | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Temperaturbereich (bewegt) | -5 °C bis 50 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
