2170590 | LAPP
PUR ethernet cable, Cat 6A, ethernet/IP, 8-wire, AWG 24, green, 2170590
Order No.: 33P5648
EAN: 4044777942176
MPN:
2170590
ETHERLINE PN Cat. 6A P FD FC
Series: ETHERLINE PN CAT.6A FD FC
Unit Price (€ / mtr.)
7.0805 € *
Available: 0 mtr.
Leadtime: On Request **

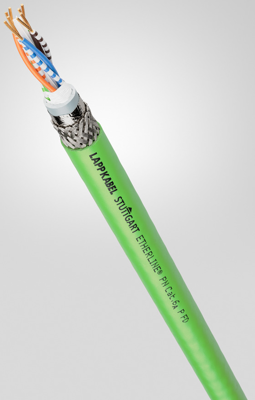

Ethernet cable, 2170590, LAPP
The 2170590 is an ethernet cable category 6A, Class EA for highly flexible use with FC inner sheath - verified up to 500 MHz.
Features
- Mechanical and plant engineering
- Wind Energy
- Flame-retardant
- Mechanical resistance
- Assembly time
- Power chain
- Interference signals
- UV-resistant
Technical specifications
| Aderisolationsmaterial | PE | |
| Anzahl der Adern | 8 | |
| Ausführung | Ethernet-Kabel | |
| Außendurchmesser | 8.9 mm | |
| AWG-Leiterquerschnitt | AWG 24 | |
| Bussystem | Ethernet/IP | |
| Farbe | grün | |
| Halogenfrei | No | |
| Kategorie | Cat 6A | |
| Leitermaterial | Kupfer, blank | |
| Material | PUR | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | Yes | |
| Temperaturbereich (bewegt) | -30 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
