2170950 | LAPP
PVC ethernet cable, Cat 5e, 8-wire, AWG 24, gray, 2170950
Order No.: 33P5638
EAN: 4044777771325
MPN:
2170950
ETHERLINE LAN Cat.5e U/UTP 4x2xAWG24
Series: ETHERLINE LAN 200 Cat.5e
Unit Price (€ / mtr.)
0.714 € *
Available: 0 mtr.
Leadtime: On Request **

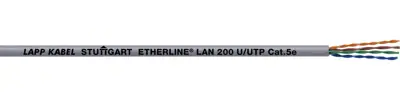

Ethernet cable, 2170950, LAPP
The 2170950 is an installation cable for structured horizontal cabling. This cable is ideal for LAN data transmission in all Ethernet (IEEE 802.3) applications up to 1000 Base-T.
Features
- Transfer of digital and analogue data signals
- Flame-retardant
- Halogen-free
- Interference signals
Applications
- For office wiring, administration and development buildings in the tertiary sector
Technical specifications
| Aderisolationsmaterial | PE | |
| Anzahl der Adern | 8 | |
| Ausführung | Ethernet-Kabel | |
| Außendurchmesser | 5.1 mm | |
| AWG-Leiterquerschnitt | AWG 24 | |
| Farbe | grau | |
| Halogenfrei | No | |
| Kategorie | Cat 5e | |
| Material | PVC | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | No | |
| Temperaturbereich (bewegt) | -0 °C bis 50 °C | |
| Temperaturbereich (unbewegt) | -20 °C bis 60 °C |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
