2170962 | LAPP
LSZH ethernet cable, Cat 6A, ethernet/IP, 8-wire, AWG 23, orange, 2170962
Order No.: 33P5646
EAN: 4044777771684
MPN:
2170962
ETHERLINE LAN Cat.6A F/FTP 4x2xAWG23 LSZ
Series: ETHERLINE LAN 500 Cat.6A
Unit Price (€ / mtr.)
1.5113 € *
Available: 0 mtr.
Leadtime: On Request **

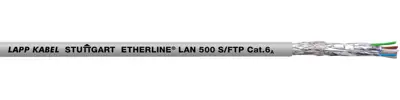

Ethernet cable, 2170962, LAPP
The 2170962 is an ethernet cable for category 6A/ class EA -verified up to 500 MHz.
Features
- Flame-retardant
- Halogen-free
- Interference signals
Applications
- For office wiring, administration and development buildings in the tertiary sector
Technical specifications
| Aderisolationsmaterial | PE | |
| Anzahl der Adern | 8 | |
| Ausführung | Ethernet-Kabel | |
| Außendurchmesser | 7.3 mm | |
| AWG-Leiterquerschnitt | AWG 23 | |
| Bussystem | Ethernet/IP | |
| Farbe | orange | |
| Halogenfrei | Yes | |
| Kategorie | Cat 6A | |
| Leitermaterial | Kupfer, verzinnt | |
| Material | LSZH | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Temperaturbereich (bewegt) | -0 °C bis 50 °C | |
| Temperaturbereich (unbewegt) | -20 °C bis 60 °C |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
