302006STP | LAPP
PVC data cable, 12-wire, 0.62 mm², AWG 20, gray, 302006STP
Order No.: 33P6094
EAN: 4044776150497
MPN:
302006STP
UNITRONIC 300 STP 20/6PR
Series: UNITRONIC 300 STP
Unit Price (€ / mtr.)
30.2974 € *
Available: 0 mtr.
Leadtime: On Request **
Data cable, 302006STP, LAPP

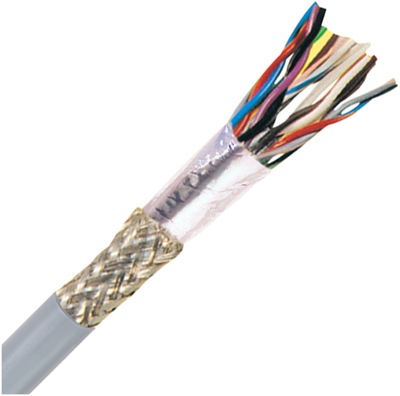

The 302006STP is a rugged, multi-pair, low voltage control and signal cable for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure extruded for improved flexibility and easier installation. The shield consists of a foil tape and tinned copper drain wire for RFI & EMI protection.
Features
- Suitable for outdoor use
- Flame-retardant
- Oil-resistant
- Interference signals
- Temperature-resistant
- UV-resistant
Applications
- Process control
- Electrical equipment
- Industrial machinery
- Low-voltage control interconnect
Technical specifications
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 12 | |
| Ausführung | Datenleitung | |
| Außendurchmesser | 13.3 mm | |
| AWG-Leiterquerschnitt | AWG 20 | |
| Farbe | grau | |
| Halogenfrei | No | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,62 mm² | |
| Material | PVC | |
| Schirmung | geschirmt | |
| Schleppkettentauglich | No | |
| Temperaturbereich (bewegt) | -25 °C bis 105 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 105 °C |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85444993 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
