73220400 | LAPP
PUR spiral data cable, 0.5/2 m, 5-wire, 0.34 mm², gray, 73220400
Order No.: 33P6285
EAN: 4044777866687
MPN:
73220400
UNITRONIC SPIRAL LiF2Y11Y 5X0,34/500
Series: UNITRONIC SPIRAL LiF2Y11Y
Unit Price (€ / pc.)
65.331 € *
Available: 0 pcs.
Leadtime: On Request **

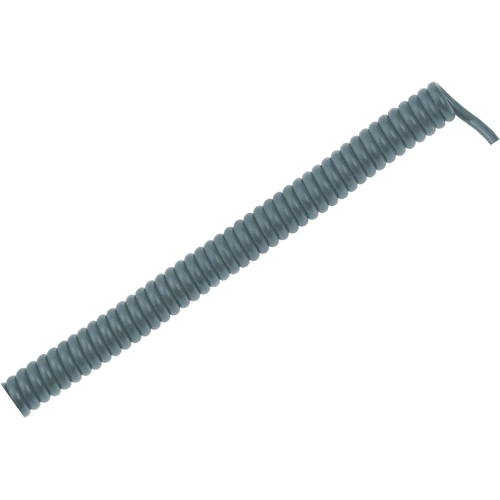

Spiral cable, 73220400, LAPP
The 73220400 is used wherever cables with smallest dimensions are required, e.g. in measuring and controlling engineering. High flexibility affords extended lengths of up to 4 times the unextended spiral length. This product is a flexible data cable for weak-current applications. The cut resistant polyurethane outer sheath is largely resistant to the action of acids, caustic solutions and certain oils, and to abrasion.
Features
- Mechanical resistance
- Oil-resistant
- Transmission of control and measuring signals
- Abrasion and cut-resistant
- Very high flexibility
- Halogen-free and flame-retardant
Applications
- In measurement and control engineering
- Handling and measurement equipment
- Conveyor and transport systems
Technical specifications
| Aderisolationsmaterial | Polyolefin | |
| Anzahl der Adern | 5 | |
| Ausführung | Spiral-Datenkabel | |
| Außendurchmesser | 5.9 mm | |
| Farbe | grau | |
| Halogenfrei | Yes | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,34 mm² | |
| Material | PUR | |
| Schirmung | ungeschirmt | |
| Schleppkettentauglich | No | |
| Temperaturbereich (bewegt) | -5 °C bis 50 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
