5555934003 | LAPP
Charging cable, 5 m, type 2 to type 2, 3 phase, mode 3, 32 A, 440 V, 5555934003
Order No.: 33P311
EAN: 4064727469478
MPN:
5555934003
Unit Price (€ / pc.)
190.6499 € *
Available: 1 pcs.
Leadtime: 1 Week **

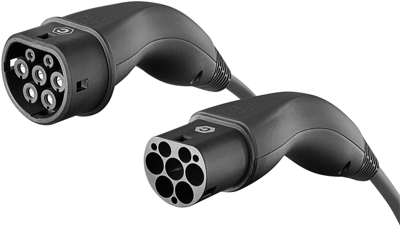

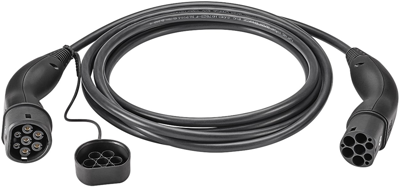

Standard charging cable, 5555934003, LAPP
The 5555934003 with a length of 5 m enables easy and fast charging at public and private charging stations and wallboxes. The high protection rating of IP55, together with the additional longitudinal waterproofing, ensures excellent moisture protection. The charging cable, which is designed in accordance to the applicable IEC and EN standards, is both robust and durable, but also easy to handle thanks to its low weight.
Features
- Halogen-free
- Flame-retardant
- Oil-resistant
Technical specifications
| Connection (1) | type 2 | |
| Connection (2) | type 2 | |
| Number of phases | 3 | |
| Colour | black | |
| Cable length | 5 m | |
| Loading mode | mode 3 | |
| Cable cross-section | 5 x 6.0 mm² + 1 x 0.5 mm² | |
| Rated voltage | 440 V | |
| Rated current | 32 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Original Packaging | Carton with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
