5555934005 | LAPP
Charging cable, 7 m, type 2 to type 2, 3 phase, mode 3, 20 A, 440 V, 5555934005
Order No.: 33P309
EAN: 4064727469492
MPN:
5555934005
Unit Price (€ / pc.)
192.5539 € *
Available: 1 pcs.
Leadtime: 1 Week **

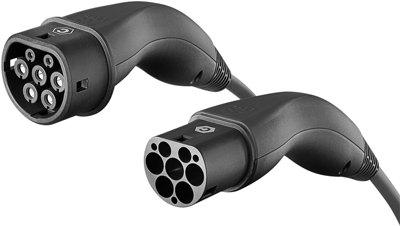

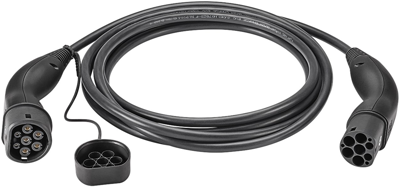

Standard charging cable, 5555934005, LAPP
The 5555934005 with a length of 7 m enables easy and fast charging at public and private charging stations and wallboxes. The high protection rating of IP55, together with the additional longitudinal waterproofing, ensures excellent moisture protection. The charging cable, which is designed in accordance to the applicable IEC and EN standards, is both robust and durable, but also easy to handle thanks to its low weight.
Features
- Halogen-free
- Flame-retardant
- Oil-resistant
Technical specifications
| Connection (1) | Typ 2 | |
| Connection (2) | Typ 2 | |
| Number of phases | 3 | |
| Loading mode | Mode 3 | |
| Cable length | 7 m | |
| Colour | schwarz | |
| Cable cross-section | 5 x 2,5 mm² + 1 x 0,5 mm² | |
| Rated current | 20 A | |
| Rated voltage | 440 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Original Packaging | Karton mit 1 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
