26010104 | LAPP
FO cable, multimode 62.5/125 µm, fibers: 4, OM1, LSZH, orange, 26010104
Order No.: 33P2971
EAN: 4056155124395
MPN:
26010104
HITRONIC HDH 4G 62.5/125 OM1
Series: HITRONIC HDH
Unit Price (€ / mtr.)
1.428 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

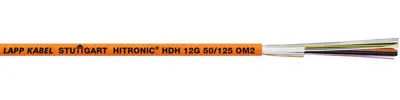

Mini breakout cable, 26010104, LAPP
The 26010104 is an indoor mini breakout cable designed for direct connector assembly, with up to 12 tight-buffered fibres, flame retardant, high flexibility and halogen-free sheaths.
Features
- Heat-resistant
- Low weight
Applications
- For indoor use
- Suitable for broadcasting industries and events management
Technical specifications
| Number of fibres | 4 | |
| Outer diameter | 6.3 mm | |
| Colour | orange | |
| Chamfer type | multimode 62.5/125 µm | |
| Halogen free | Yes | |
| Category | OM1 | |
| Material | LSZH | |
| Temperature range (unmoved) | -20 °C to 70 °C |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85447000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
