26300204 | LAPP
FO cable, multimode 50/125 µm, fibers: 4, OM2, PUR, black, 26300204
Order No.: 33P3029
EAN: 4056155124562
MPN:
26300204
HITRONIC HRM-FD1000 4G 50/125 OM2
Series: HITRONIC HRM-FD
Unit Price (€ / mtr.)
8.2943 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

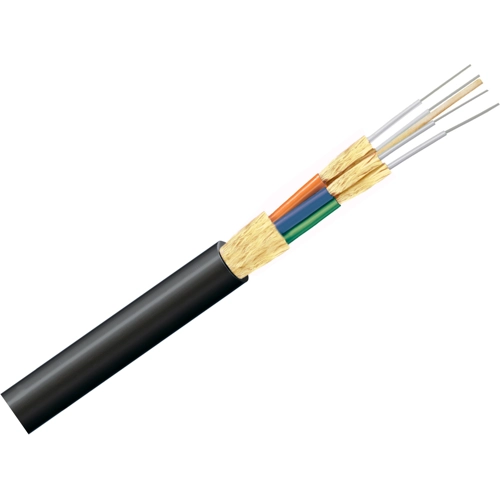

Breakout cable, 26300204, LAPP
The 26300204 is a universal mobile breakout cable for direct connector assembly (based on military norm MIL-C-85045), with up to 12 tight-buffered simplex units, flame-retardant and halogen-free sheaths.
Features
- Mechanical and plant engineering
- Mechanical resistance
- Low weight
- Optimum strain relief
- Power chain
- UV-resistant
Applications
- For highly flexible industrial applications
- Industrial environments
- For indoor and outdoor use
Technical specifications
| Number of fibres | 4 | |
| Outer diameter | 7.8 mm | |
| Colour | black | |
| Chamfer type | multimode 50/125 µm | |
| Halogen free | Yes | |
| Category | OM2 | |
| Material | PUR | |
| Temperature range (active) | -20 °C to 60 °C | |
| Temperature range (unmoved) | -40 °C to 70 °C |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85447000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
