26310208 | LAPP

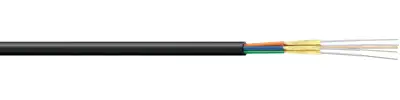

FO cable, multimode 50/125 µm, fibers: 8, OM2, PUR, black, 26310208
Order No.: 33P3068
EAN: 4056155124791
MPN:
26310208
HITRONIC TORSION 8G 50/125 OM2
Series: HITRONIC TORSION
Unit Price (€ / mtr.)
9.282 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Breakout cable, 26310208, LAPP
The 26310208 is a universal mobile breakout cable for direct connector assembly (based on military norm MIL-C-85045), with up to 12 tight-buffered simplex units, flame-retardant and halogen-free sheaths.
Features
- Wind Energy
- Mechanical resistance
- Low weight
- Optimum strain relief
- Torsion-resistant
- UV-resistant
Applications
- For indoor and outdoor use
- Link between moving parts
- inside wind towers
- Industrial environments
Technical specifications
| Anzahl der Fasern | 8 | |
| Außendurchmesser | 11.6 mm | |
| Farbe | schwarz | |
| Faserart | Multimode 50/125 µm | |
| Halogenfrei | Yes | |
| Kategorie | OM2 | |
| Material | PUR | |
| Temperaturbereich (bewegt) | -30 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 70 °C |
Download
Logistics
| Ursprungsland | ES |
| Zolltarifnummer | 85447000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
