55501040 | LAPP
Straight hose screw fitting, M20, 16 mm, PA, IP68/IP69, gray, (L) 39 mm, 55501040
Order No.: 33P3616
EAN: 4044773267471
MPN:
55501040
SILVYN KLICK M20X1,5/1 GY
Series: SILVYN KLICK-M
Unit Price (€ / pc.)
6.1285 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

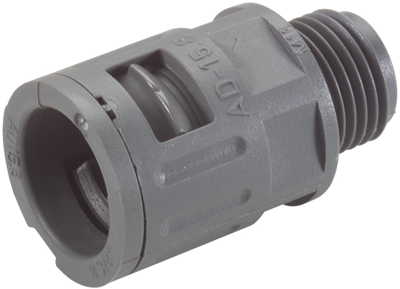

Conduit fitting, 55501040, LAPP
The 55501040 is a straight, one piece conduit gland with push-in closure for quick secure assembly. Dismantle by sliding the locking sleeve, the gland is suitable for conduit type SILVYN RILL. This product can be used in machine and plant constructions and in isolated electrical installations.
Features
- Fast assembly
- Easy to disassemble
- High-tensile
- High sealing performance
- Assembly time
- Temperature-resistant
Technical specifications
| Colour | gray | |
| Thread size | M20 | |
| Length | 39 mm | |
| Material | PA | |
| max. operating temperature | 115 °C | |
| min. operating temperature | -40 °C | |
| Nominal width | 16 mm | |
| Degree of protection (IP) | IP68/IP69 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
