55501055 | LAPP
Straight hose screw fitting, M20, 21 mm, PA, IP68/IP69, black, (L) 44.5 mm, 55501055
Order No.: 33P3617
EAN: 4044773267440
MPN:
55501055
SILVYN KLICK M20X1,5/2 BK
Series: SILVYN KLICK-M
Unit Price (€ / pc.)
5.3074 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Conduit fitting, 55501055, LAPP

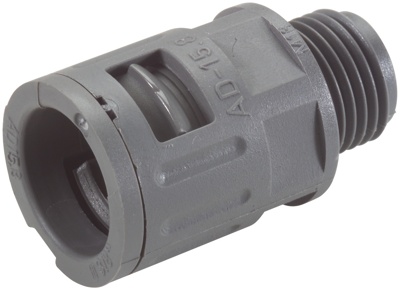

The 55501055 is a straight, one piece conduit gland with push-in closure for quick secure assembly. Dismantle by sliding the locking sleeve, the gland is suitable for conduit type SILVYN RILL. This product can be used in machine and plant constructions and in isolated electrical installations.
Features
- Fast assembly
- Easy to disassemble
- High-tensile
- High sealing performance
- Assembly time
- Temperature-resistant
Technical specifications
| Colour | black | |
| Thread size | M20 | |
| Length | 44.5 mm | |
| Material | PA | |
| max. operating temperature | 115 °C | |
| min. operating temperature | -40 °C | |
| Nominal width | 21 mm | |
| Degree of protection (IP) | IP68/IP69 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
