55502436 | LAPP
45° hose screw fitting, M20, PA, IP65/IP67, gray, (L) 47 mm, 55502436
Order No.: 33P7342
EAN: 4044777305827
MPN:
55502436
SILVYN MPC 45° M20X1,5 / 20 GY
Series: SILVYN MPC 45° M
Unit Price (€ / pc.)
5.0932 € *
Available: 9 pcs.
Leadtime: 1 Week **
Total Price:
5.09 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0932 €
10 pcs.
4.6529 €
50 pcs.
4.3673 €
100 pcs.
4.0817 €
*incl. VAT plus shipping costs
**Subject to prior sale

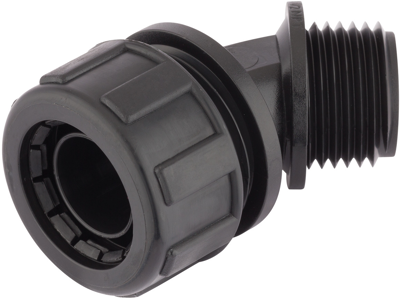

Hose fitting, 55502436, LAPP
The 55502436 is a polyamide conduit gland for smooth and corrugated conduits. The 45° angle with integrated conduit connection enables best assembling.
Features
- Dust protection
- Moisture protection
- Tensile strength
- Halogen-free
- Oil-resistant
- Optimum strain relief
- Temperature-resistant
- UV-resistant
Technical specifications
| Colour | gray | |
| Thread size | M20 | |
| Length | 47 mm | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -40 °C | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
