61804227 | LAPP
Straight hose screw fitting, M12, 7 mm, PA, IP66/IP67/IP68/IP69, gray, (L) 39 mm, 61804227
Order No.: 33P5923
EAN: 4044777577019
MPN:
61804227
FIPLOCK ONE M12X1,5 / 07 GY
Series: FIPLOCK ONE M
Unit Price (€ / pc.)
4.0817 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.08 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0817 €
5 pcs.
3.8556 €
10 pcs.
3.6295 €
25 pcs.
3.3915 €
50 pcs.
3.1773 €
*incl. VAT plus shipping costs
**Subject to prior sale

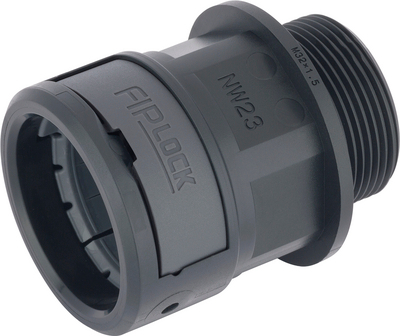

Hose fitting, 61804227, LAPP
The 61804227 is a hose fitting, with a metric connection thread, made of specially modified, zero-halogen polyamide 6 is self-extinguishing and resistant against most chemical media commonly used. Due to its excellent UV-resistance, this product is also perfectly suited for outdoor installations.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Maximum vibration protection
- Mechanical resistance
- Low weight
- Optimum strain relief
- Waterproof
Technical specifications
| Farbe | grau | |
| Gewindegröße | M12 | |
| Länge | 39 mm | |
| Material | PA | |
| max. Temperatur | 120 °C | |
| min. Temperatur | -45 °C | |
| Nennweite | 7 mm | |
| Schutzart (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Ursprungsland | QU |
| Zolltarifnummer | 39174000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
