61804262 | LAPP

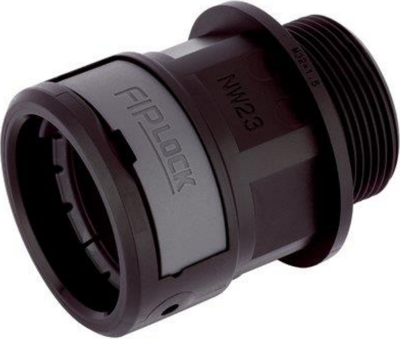

Straight hose screw fitting, NPT 1/2'', 12 mm, PA, IP66/IP67/IP68/IP69, black, (L) 44.5 mm, 61804262
Order No.: 33P5958
EAN: 4044777577361
MPN:
61804262
FIPLOCK ONE NPT 1/2'' - 12 BK
Series: FIPLOCK ONE NPT
Unit Price (€ / pc.)
4.9623 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.96 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9623 €
5 pcs.
4.6767 €
10 pcs.
4.4030 €
25 pcs.
4.1293 €
50 pcs.
3.8556 €
*incl. VAT plus shipping costs
**Subject to prior sale

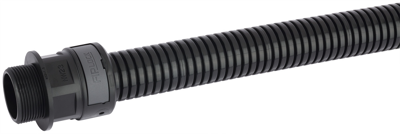

Hose fitting, 61804262, LAPP
The 61804262 is a hose fitting, with a NPT connection thread, made of specially modified, zero-halogen polyamide 6 is self-extinguishing and resistant against most chemical media commonly used. Due to its excellent UVresistance, This product is also perfectly suited for outdoor installations.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Maximum vibration protection
- Mechanical resistance
- Low weight
- Optimum strain relief
- Waterproof
Technical specifications
| Colour | black | |
| Thread size | NPT 1/2'' | |
| Length | 44.5 mm | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -50 °C | |
| Nominal width | 12 mm | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
