61804276 | LAPP
Straight hose screw fitting, NPT 2'', 48 mm, PA, IP66/IP67/IP68/IP69, gray, (L) 72.9 mm, 61804276
Order No.: 33P5972
EAN: 4044777577507
MPN:
61804276
FIPLOCK ONE NPT 2'' - 48 GY
Series: FIPLOCK ONE NPT
Unit Price (€ / pc.)
29.1312 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
29.13 € *
Price list
Quantity
Price per unit*
1 pcs.
29.1312 €
5 pcs.
27.5128 €
10 pcs.
25.8944 €
25 pcs.
24.2760 €
50 pcs.
22.6576 €
*incl. VAT plus shipping costs
**Subject to prior sale

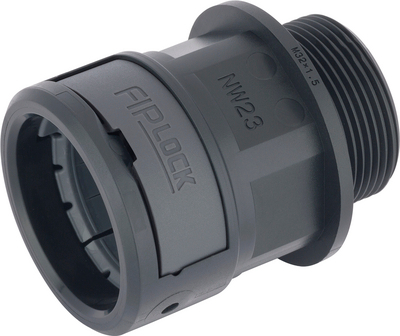

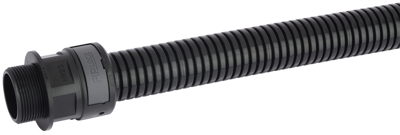

Hose fitting, 61804276, LAPP
The 61804276 is a hose fitting, with a NPT connection thread, made of specially modified, zero-halogen polyamide 6 is self-extinguishing and resistant against most chemical media commonly used. Due to its excellent UVresistance, This product is also perfectly suited for outdoor installations.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Maximum vibration protection
- Mechanical resistance
- Low weight
- Optimum strain relief
- Waterproof
Technical specifications
| Colour | gray | |
| Thread size | NPT 2'' | |
| Length | 72.9 mm | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -50 °C | |
| Nominal width | 48 mm | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
