61804527 | LAPP

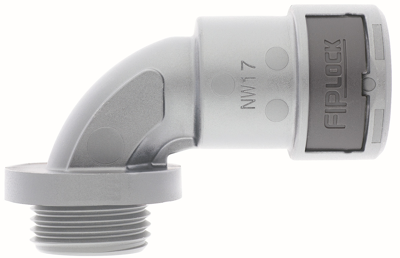

90° hose screw fitting, NPT 1-1/4'', 36 mm, PA, IP66/IP67/IP68/IP69, gray, (L) 89.8 mm, 61804527
Order No.: 33P5713
EAN: 4044778394998
MPN:
61804527
FIPLOCK ONE 90°-B NPT 1-1/4'' - 36 GY
Series: FIPLOCK ONE 90° NPT
Unit Price (€ / pc.)
40.8289 € *
Available: 0 pcs.
Leadtime: On Request **
Hose fitting, 61804527, LAPP
The 61804527 is a conduit fitting system for highest requirements, suitable for FIPLOCK PA6 / PA12. This product has very high tensile strength due to all around tooth system and ensures mounting safety due to integrated coding system.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Low weight
Applications
- Demand of increased liquid tightnes
- For indoor and outdoor use
Technical specifications
| Farbe | grau | |
| Gewindegröße | NPT 1-1/4'' | |
| Länge | 89.8 mm | |
| Material | PA | |
| max. Temperatur | 120 °C | |
| min. Temperatur | -45 °C | |
| Nennweite | 36 mm | |
| Schutzart (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Zolltarifnummer | 39174000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
