61804536 | LAPP

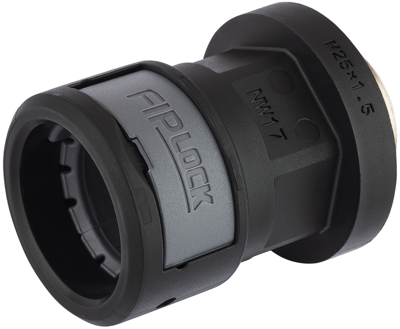

Straight hose screw fitting, M25, 17 mm, PA, IP66/IP67/IP68/IP69, black, 61804536
Order No.: 33P5721
EAN: 4044778395070
MPN:
61804536
FIPLOCK ONE METALL M25X1,5 / 17 BK
Series: FIPLOCK ONE Metal M
Unit Price (€ / pc.)
31.6540 € *
Available: 0 pcs.
Leadtime: On Request **
Hose fitting, 61804536, LAPP
The 61804536 is a conduit fitting system for highest requirements, suitable for FIPLOCK PA6 / PA12. This product has very high tensile strength due to all around tooth system and ensures mounting safety due to integrated coding system.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Low weight
Applications
- Demand of increased liquid tightnes
- For indoor and outdoor use
Technical specifications
| Farbe | schwarz | |
| Gewindegröße | M25 | |
| Material | PA | |
| max. Temperatur | 120 °C | |
| min. Temperatur | -45 °C | |
| Nennweite | 17 mm | |
| Schutzart (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Ursprungsland | QU |
| Zolltarifnummer | 39174000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
