61804581 | LAPP
Straight hose screw fitting, M20, 17 mm, PA, IP66/IP67/IP68/IP69, gray, 61804581
Order No.: 33P5762
EAN: 4044778395483
MPN:
61804581
FIPLOCK ONE METALL XL M20X1,5 / 17 GY
Series: FIPLOCK ONE Metal M
Unit Price (€ / pc.)
15.1844 € *
Available: 0 pcs.
Leadtime: On Request **

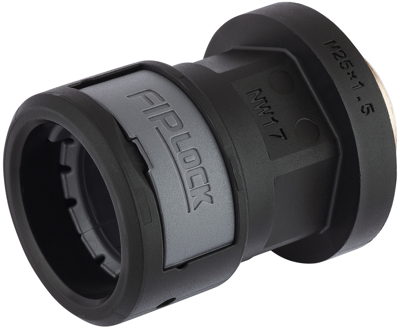

Hose fitting, 61804581, LAPP
The 61804581 is a conduit fitting system for highest requirements, suitable for FIPLOCK PA6 / PA12. This product has very high tensile strength due to all around tooth system and ensures mounting safety due to integrated coding system.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Low weight
Applications
- Demand of increased liquid tightnes
- For indoor and outdoor use
Technical specifications
| Colour | gray | |
| Thread size | M20 | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -45 °C | |
| Nominal width | 17 mm | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
