61804902 | LAPP
Straight hose screw fitting, M40, PA, IP66/IP67/IP68/IP69, black, 61804902
Order No.: 33P6913
EAN: 4044778397739
MPN:
61804902
FIPLOCK ONE-MS M40X1,5 / 36 BK
Series: FIPLOCK ONE MS-M
Unit Price (€ / pc.)
76.7193 € *
Available: 0 pcs.
Leadtime: On Request **

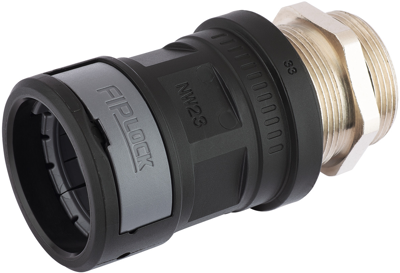

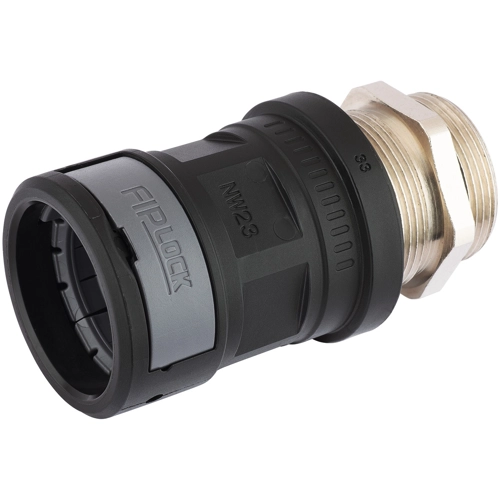

Tube fitting, 61804902, LAPP
Conduit fitting system for highest requirements, suitable for FIPLOCK PA6 / PA12.
Features
- All around locking mechanism due to 360° tooth system
- Locking mechanism with integrated coding system
- Extended sealing range across multiple corrugated conduit waves
- Cable strain relief
Applications
- Demand of increased liquid tightness
- For indoor and outdoor use
Technical specifications
| Colour | black | |
| Thread size | M40 | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -45 °C | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
