61804912 | LAPP

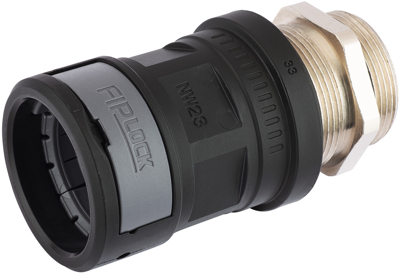

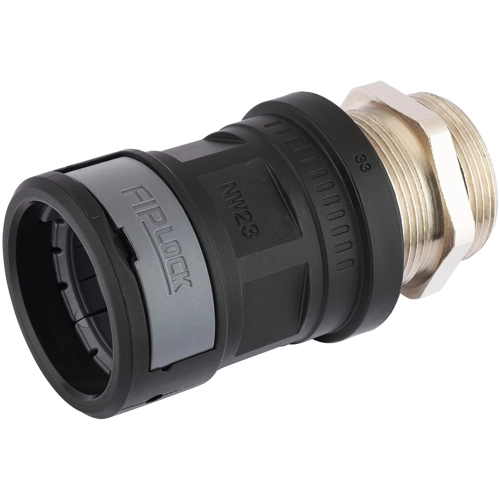

Straight hose screw fitting, M25, PA, IP66/IP67/IP68/IP69, black, 61804912
Order No.: 33P6922
EAN: 4044778397821
MPN:
61804912
FIPLOCK ONE-MS XL M25X1,5 / 23 BK
Series: FIPLOCK ONE MS-M
Unit Price (€ / pc.)
55.8705 € *
Available: 0 pcs.
Leadtime: On Request **
Tube fitting, 61804912, LAPP
Conduit fitting system for highest requirements, suitable for FIPLOCK PA6 / PA12.
Features
- All around locking mechanism due to 360° tooth system
- Locking mechanism with integrated coding system
- Extended sealing range across multiple corrugated conduit waves
- Cable strain relief
Applications
- Demand of increased liquid tightness
- For indoor and outdoor use
Technical specifications
| Colour | schwarz | |
| Thread size | M25 | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -45 °C | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
