61805037 | LAPP

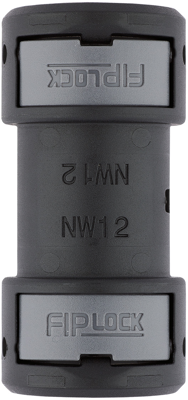

Straight hose screw fitting, 36 mm, PA, IP66/IP67/IP68/IP69, gray, (L) 104.1 mm, 61805037
Unit Price (€ / pc.)
30.5354 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
30.54 € *
Price list
Quantity
Price per unit*
1 pcs.
30.5354 €
10 pcs.
27.3224 €
25 pcs.
25.7159 €
50 pcs.
24.1094 €
100 pcs.
22.5029 €
*incl. VAT plus shipping costs
**Subject to prior sale
Tube fitting, 61805037, LAPP
Conduit fitting system for highest requirements, suitable for FIPLOCK PA6 / PA12.
Features
- All around locking mechanism due to 360° tooth system
- Locking mechanism with integrated coding system
- Extended sealing range across multiple corrugated conduit waves
- Cost-saving due to quick and easy installation
Applications
- Demand of increased liquid tightness
- For indoor and outdoor use
Technical specifications
| Colour | gray | |
| Length | 104.1 mm | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -45 °C | |
| Nominal width | 36 mm | |
| Degree of protection (IP) | IP66/IP67/IP68/IP69 |
Download
Logistics
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
