10123900 | LAPP

Grommet housing, size HB24, aluminum alloy, PG21/PG29, angled, longitudinal bow locking, IP65, 10123900

Order No.: 30P490
EAN: 4044773055184
MPN:
10123900
EPIC H-B 24 TS-RO 29 ZW
Series: EPIC H-B 24
LAPP

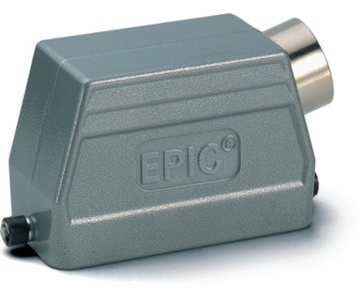

10123900 LAPP Housings for HDC Connectors Image 1
10123900 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.4680 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
20.47 € *
Price list
Quantity
Price per unit*
1 pcs.
20.4680 €
5 pcs.
18.4212 €
10 pcs.
16.8861 €
50 pcs.
15.8627 €
100 pcs.
14.8393 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sleeve housing, 10123900, LAPP

The 10123900 housing with a side cable entry and pivots for a single lever is ideal for use, for example, in investment constructions and is equipped with a neck.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Version grommet housing
Shell size HB24
Shell Material aluminum alloy
Cable Outlet PG21/PG29, angled
Degree of protection (IP) IP65
Type of locking longitudinal bow locking
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
