10448100 | LAPP
Bulkhead housing, size HA10, aluminum alloy, PG65, angled, longitudinal bow locking, IP65, 10448100
Unit Price (€ / pc.)
21.9317 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
21.93 € *
Price list
Quantity
Price per unit*
1 pcs.
21.9317 €
5 pcs.
20.6822 €
10 pcs.
19.4327 €
25 pcs.
18.1713 €
*incl. VAT plus shipping costs
**Subject to prior sale

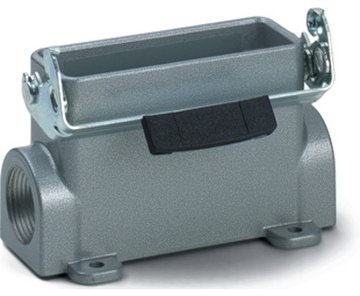

Bulkhead housing, 10448100, LAPP
The 10448100 compact metal housing is ideal for use in rectangular connectors, for example in electronic laboratories.
Features
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Technical specifications
| Ausführung | Anbaugehäuse | |
| Gehäusegröße | HA10 | |
| Gehäusematerial | Aluminiumlegierung | |
| Kabelausgang | PG65, abgewinkelt | |
| Schutzart (IP) | IP65 | |
| Verriegelung | Längsbügelverriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
