19040700 | LAPP
Grommet housing, size HB10, aluminum alloy, M20/M25, straight, longitudinal bow locking, IP65, 19040700
Unit Price (€ / pc.)
9.5319 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.53 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5319 €
10 pcs.
8.9845 €
50 pcs.
8.4490 €
100 pcs.
7.8897 €
*incl. VAT plus shipping costs
**Subject to prior sale

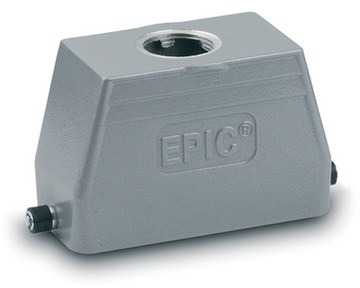

Sleeve housing, 19040700, LAPP
The 19040700 universal housing can be used, for example, in the plastics industry.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry

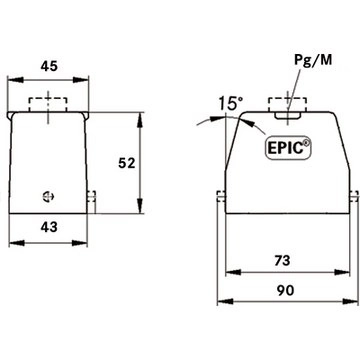

Technical specifications
| Version | grommet housing | |
| Shell size | HB10 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | M20/M25, straight | |
| Degree of protection (IP) | IP65 | |
| Type of locking | longitudinal bow locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
