19042900 | LAPP

Grommet housing, size HB10, aluminum alloy, M20/M25, angled, longitudinal bow locking, IP65, 19042900

Order No.: 30P233
EAN: 4044773557657
MPN:
19042900
EPIC H-B 10 TS-RO M20 ZW
Series: EPIC H-B 10
LAPP

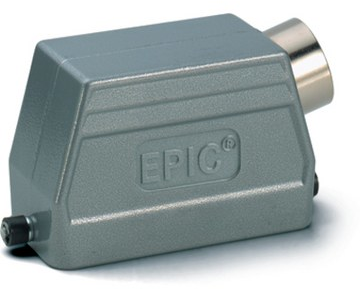

19042900 LAPP Housings for HDC Connectors Image 1
19042900 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.6501 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
11.65 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6501 €
10 pcs.
10.9718 €
50 pcs.
10.3173 €
100 pcs.
9.6509 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sleeve housing, 19042900, LAPP

The 19042900 connector housing with a side cable entry is suitable for use in lighting and sound systems.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Version grommet housing
Shell size HB10
Shell Material aluminum alloy
Cable Outlet M20/M25, angled
Degree of protection (IP) IP65
Type of locking longitudinal bow locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
