19046900 | LAPP

Grommet housing, size HB10, aluminum alloy, M20/M25, straight, longitudinal bow locking, IP65, 19046900

Order No.: 30P211
EAN: 4044773557589
MPN:
19046900
EPIC H-B 10 TBF-LB M20
Series: EPIC H-B 10
LAPP

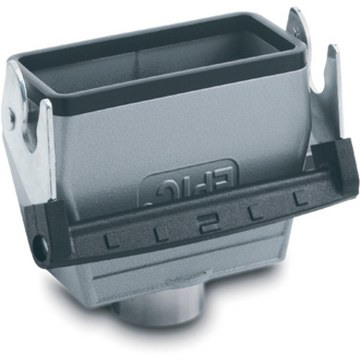

19046900 LAPP Housings for HDC Connectors Image 1

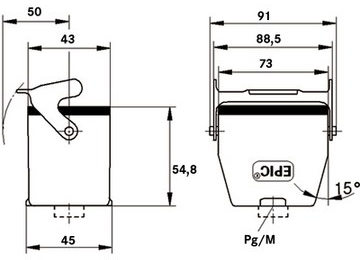

19046900 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
28.5362 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
28.54 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
28.5362 €

Sleeve housing, 19046900, LAPP

The 19046900 metal housing with a direct cable entry is ideal for use in the plastics industry.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Version grommet housing
Shell size HB10
Shell Material aluminum alloy
Cable Outlet M20/M25, straight
Degree of protection (IP) IP65
Type of locking longitudinal bow locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
