19074000 | LAPP

Surface mount housing, size HB16, aluminum alloy, M25, angled, cross bow locking, IP65, 19074000

Order No.: 30P428
EAN: 4044773087208
MPN:
19074000
H-B 16 SGR M25 ZW.
Series: EPIC H-B 16

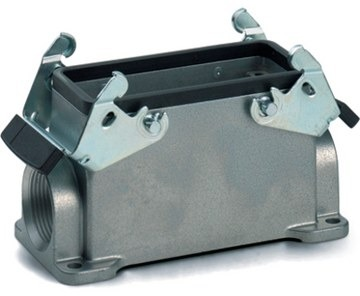

19074000 LAPP Housings for HDC Connectors Image 1
19074000 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
25.6088 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
25.61 € *
Price list
Quantity
Price per unit*
1 pcs.
25.6088 €
5 pcs.
23.4073 €
10 pcs.
21.9555 €
25 pcs.
20.4799 €
*incl. VAT plus shipping costs
**Subject to prior sale

Bulkhead housing, 19074000, LAPP

The 19074000 universal metal housing consists of 2 double levers, a cable entry and is suitable for use in the plastics industry.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Ausführung Anbaugehäuse
Gehäusegröße HB16
Gehäusematerial Aluminiumlegierung
Kabelausgang M25, abgewinkelt
Schutzart (IP) IP65
Verriegelung Querbügelverriegelung
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
