19076900 | LAPP
Bulkhead housing, size HB16, aluminum alloy, 2 x M25, angled, longitudinal bow locking, IP65, 19076900
Unit Price (€ / pc.)
35.7238 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
35.72 € *
Price list
Quantity
Price per unit*
1 pcs.
35.7238 €
5 pcs.
32.6655 €
10 pcs.
30.6187 €
25 pcs.
28.5838 €
*incl. VAT plus shipping costs
**Subject to prior sale

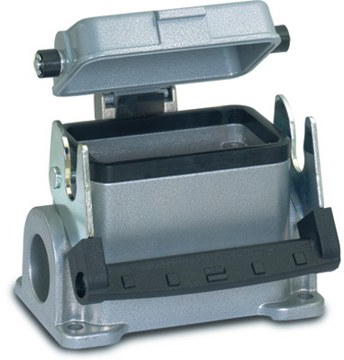

Bulkhead housing, 19076900, LAPP
The 19076900 metal housing for rectangular connectors consists of a single lever, a cable entry and is suitable for use in the plastics industry.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry
Technical specifications
| Version | bulkhead housing | |
| Shell size | HB16 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | 2 x M25, angled | |
| Degree of protection (IP) | IP65 | |
| Type of locking | longitudinal bow locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
