19424500 | LAPP
Surface mount housing, size HA3, zinc die casting, longitudinal bow locking, IP66, 19424500
Unit Price (€ / pc.)
10.2697 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.27 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2697 €
10 pcs.
9.3891 €
50 pcs.
8.7941 €
100 pcs.
8.2229 €
*incl. VAT plus shipping costs
**Subject to prior sale

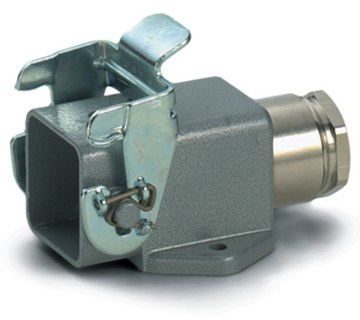

Bulkhead housing, 19424500, LAPP
The 19424500 compact base housing consists of one lever, a cable entry and is ideal for supplying power in restricted spaces.
Features
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Technical specifications
| Version | Anbaugehäuse | |
| Shell size | HA3 | |
| Shell Material | Zinkdruckguss | |
| Degree of protection (IP) | IP66 | |
| Type of locking | Längsbügelverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
