19512900 | LAPP
Grommet housing, size HA3, zinc die casting, longitudinal bow locking, IP66/IP68, 19512900
Unit Price (€ / pc.)
5.6763 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.68 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6763 €
10 pcs.
5.1884 €
50 pcs.
4.8671 €
100 pcs.
4.5458 €
*incl. VAT plus shipping costs
**Subject to prior sale

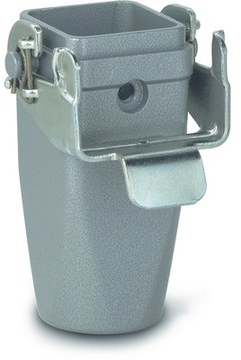

Sleeve housing, 19512900, LAPP
The 19512900 metal housing for placement in rectangular connectors comprises the smallest housing in the heavy-duty industrial connector range and ensures secure connections in the smallest of spaces.
Features
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Rectangular connector insert
- For power supply connection of devices and machines in various application
Technical specifications
| Version | grommet housing | |
| Shell size | HA3 | |
| Shell Material | zinc die casting | |
| Degree of protection (IP) | IP66/IP68 | |
| Type of locking | longitudinal bow locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
